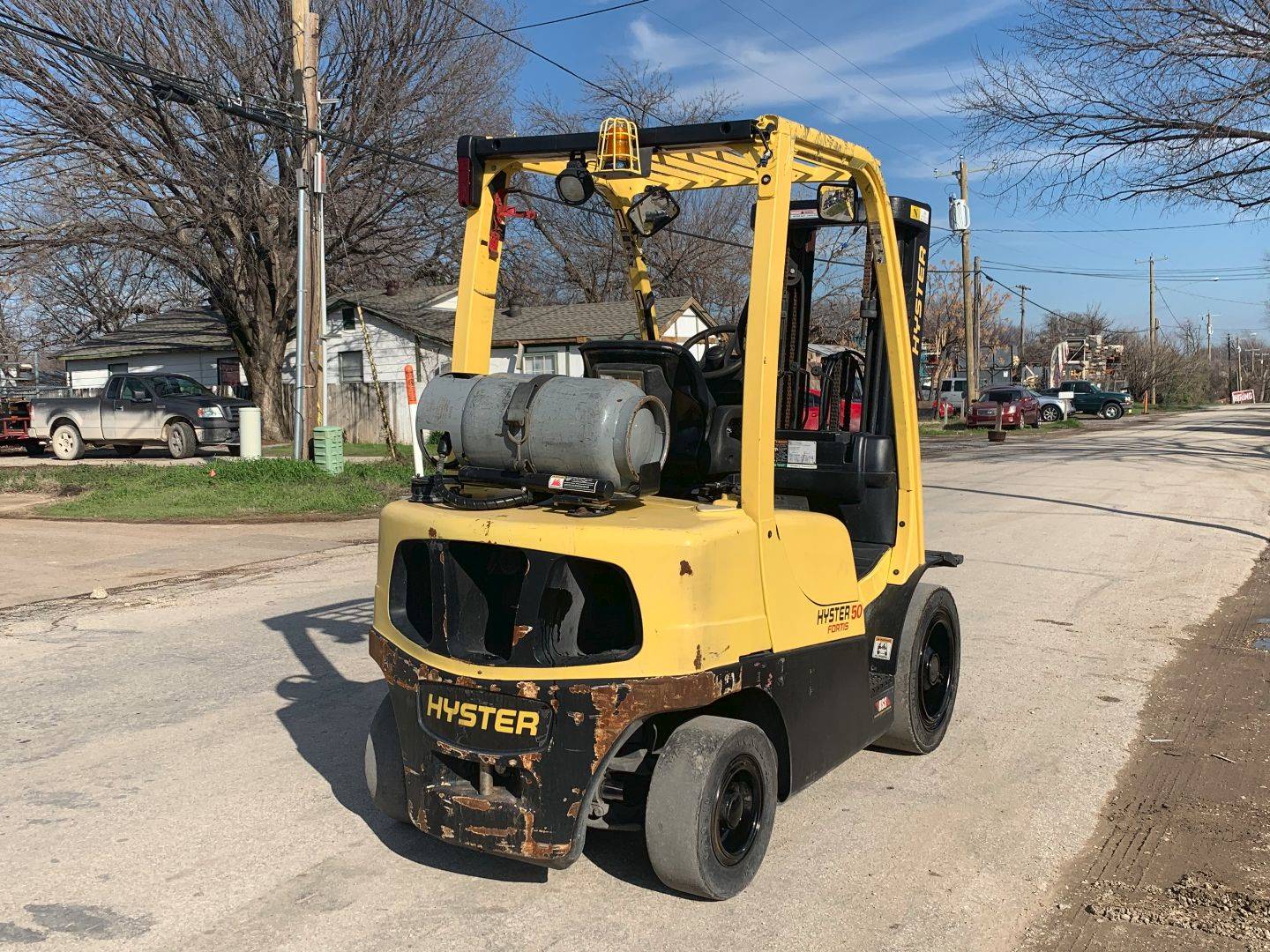

  1. Hyster H50ft Specifications

Specs for the Hyster H50FT. Mac zip and password protect. Mac mini 2010 latest os. Find equipment specs and information for this and other Forklifts. Use our comparison tool to find comparable machines for any individual specification. 1 Manufacturer Name Hyster Company Hyster Company 2 Model H40FT H50FT Engine PSI 2.4L Kubota 2.5L Kubota 2.4L Tier 4 Final PSI 2.4L Kubota 2.5L Kubota 2.4L Tier 4 Final 3 Rated Capacity lb (kg) 4000 (1814) 5000 (2268) 4 Load Center, Distance in (mm) 24.0 (610) 24.0 (610).

  • Category: Forklifts (See all Forklifts for sale)
  • Manufacturer: Hyster (See all Hyster Equipment for sale)
  • Model: H50FT (See all Hyster H50FT for sale)

Brakes

Parking brakeHand/Mechanical
Service brakeFoot/Hydraulic

Dimensions

Gradeability32%
Ground Clearance6.3 in (16 cm)
Height to Top of Overhead Guard7.1 ft (2 m)
Length to Fork Face8.6 ft (3 m)
Max Fork Height10.9 ft (3 m)
Overall Height - mast lowered7.2 ft (2 m)
Overall Width3.8 ft (1 m)
Right Angle Stack8.9 ft (3 m)
Turning Radius7.1 ft (2 m)
Wheelbase5.4 ft (2 m)

Engine

Displacement143 cu in (0 m)
Engine ModelPSI 2.4L
Fuel TypeLPG
Number of Cylinders4
Power59 hp (44 kw)
Power Measured @2700 rpm
Torque121 lbs/ft
Torque Measured @2000 rpm

MAST

Lift Speed120 ft/min
Load Capacity5000 lbs (2,268 kg)
Load Center24.1 in (61 cm)
Lower Speed114 ft/min
Mast Tip Forward6 °
Mast Tip Rear6 °

Operating Specifications

Hyster H50ftHyster

Hyster H50ft Specifications

Axle load - front3776 lbs (1,713 kg)
Axle load - rear4623 lbs (2,097 kg)
Drawbar Pull4952 lbs (2,246 kg)
Front Tire Size7.00 x 12 - 12
Fuel Capacity13.9 gal (53 l)
Hydraulic System Relief Valve Pressure2250 psi
Hydraulic Tank12.1 gal (46 l)
Max Speed11.8 mph (19 kph)
Number of Front Wheels2
Number of Rear Wheels2
Operating Weight8399 lbs (3,810 kg)
Rear Tire Size6.00 x 9
Tire TypePneumatic
